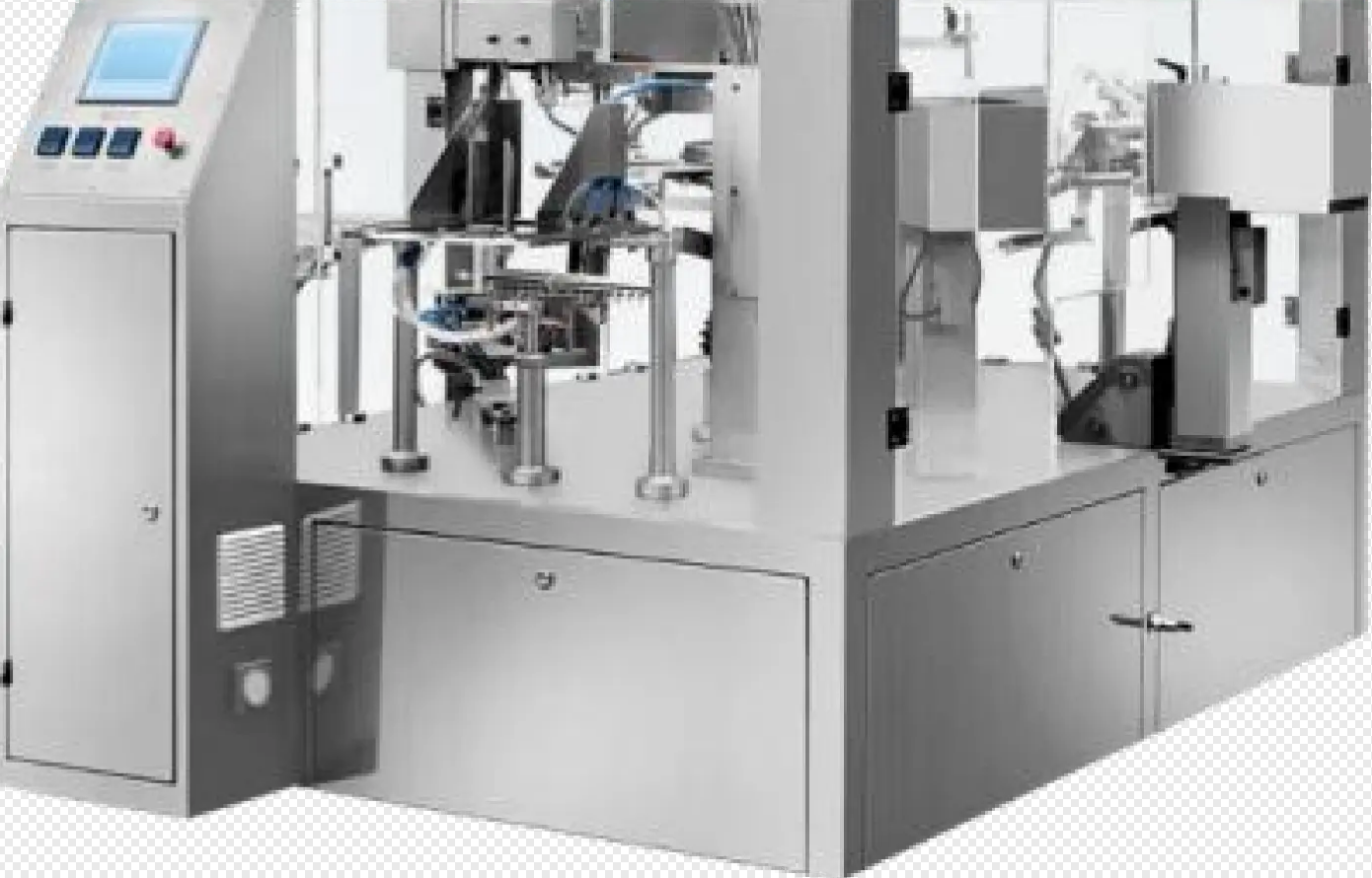

I. Pre-made Pouch Packaging Machine

Model: CO-8S-230

This machine is equipped with optional additional devices including bottom vibration, rotary air blowing and air exhaust, which effectively improve bag shaping and material filling effect. The whole machine adopts 304 stainless steel, with German Siemens touch screen, PLC and inverter, German Festo pneumatic components and French Schneider low-voltage electrical appliances, ensuring stable and reliable operation. It adopts cam mechanical transmission, with bag width of 80~230mm and bag length within 350mm. The main power is about 3.75KW, air consumption 0.4m³/min, power supply three-phase 380V/50Hz. Overall dimension is 1700×1570×1650mm and weight 1.7T.

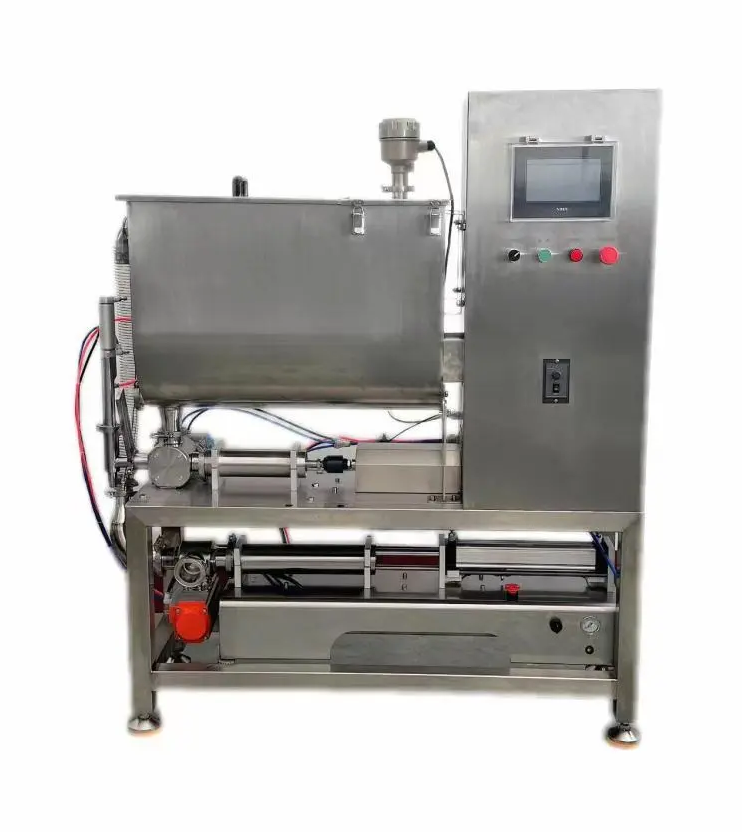

II. Servo Filling Machine

Driven by servo system, it features precise control and stable performance. All food-contacting parts are made of 304 stainless steel, and cylinder fixing parts are aluminum. It is suitable for liquids, pastes and sauces, with filling speed of 20-45 pouches per minute and accuracy of ±1-3g, both depending on material characteristics. Filling range can be customized. Power supply is three-phase 380V 50Hz, total power 1kW (main machine 750W, mixing 250W). Dimension is 1200×400×1600mm, weight 180kg, equipped with frame and fully customizable.
